Piezoelectric Ceramic Buzzer
Place of Origin:Guangdong, China
Brand Name:KS
size:30mm diamater
Essential details
| Model Number | KS-3020TD12PA |
| Type | Buzzer |
| Place of Origin | Guangdong, China |
| Brand Name | KS |
| size | 30mm diamater |
| color | black |
| type | pin |
| frenquency | 3500hz |
| Height | 20mm |
| Sound pressure level | 100db |
| voltage | 12v |
Supply Ability
Supply Ability：100000000 Piece/Pieces per Month
Packaging & delivery
Packaging Details：Piezo buzzer carton safety packing
Port: SHENZHEN
30mm 3.5khz 100db piezoelectric ceramic buzzer detail information:
A,SCOPE
This specification applies buzzer diaphragm,KS-3020TD12PA
B,SPECIFICATION
|
No. |
Item |
Unit |
Specification |
Condition |
|
1 |
Operating Voltage range |
Vp-p |
3.0 ~ 20.0VDC |
|
|
2 |
Rated Voltage |
Vp-p |
12.0 |
Volts D.C |
|
3 |
Rated Current |
MA |
Max.30 |
|
|
4 |
Sound Pressure level |
dB |
Min.100dB |
at 30cm at Rated Voltage |
|
5 |
Frequency of output Signal |
HZ |
3500± 500 |
Square Wave |
|
6 |
Operating Temp |
°C |
-20°C~80°C |
|
|
7 |
Storage Temp |
°C |
-30°C~100°C |
|
|
8 |
Dimension |
mm |
Φ30*H20 |

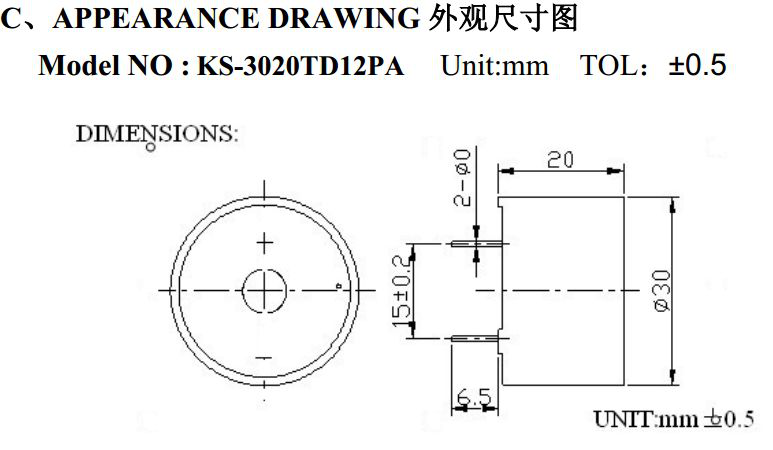

See appearance drawing |
|
9 |
Outer Covering Mateeial |
|
PPO |
|
|
10 |
Environmental Protection Regulation |
|
RoHS |
|
ceramic buzzer 30mm 12v 100db waterproof buzzer 30mm 12 volt 100db wireless buzzer 30mm 3500hz 100db electric buzzer 30mm 12 volbuzzer 30mm 12 volt 100db ultrasonic buzzer 30mm 12 volt 100db sound buzzer.
30mm 12V 100db piezo buzzer 30mm 3.5khz 100db piezo electric buzzer 30mm 12V 100db buzzer 30mm 3.5khz 100dbpiezoelectric ceramic buzzer 30mm 12v 100db waterproof buzzer 30mm 12 volt 100db wireless buzzer 30mm 3500hz 100db electric buzzer 30mm 12 volt 100db alarm buzzer 30mm 12 volt 100db ultrasonic buzzer 30mm 12 volt 100db sound buzzer.
30mm 12V 100db piezo buzzer 30mm 3.5khz 100db piezo electric buzzer 30mm 12V 100db buzzer 30mm 3.5khz 100dbpiezoelectric ceramic bu 12v 100db waterproof buzzer 30mm 12 volt 100db wireless buzzer 30mm 3500hz 100db electric buzzer 30mm 12 volt 100db alarm buzzer 30mm 12 volt 100db ultrasonic buzzer 30mm 12 volt 100db sound buz
We are professional manufacuter of various buzzers, If you need other size please contact us for further informations, we'll appreciate.
